Dual Rasterizer
A dual-mode 3D rasterizer supporting both hardware-accelerated (DirectX 11) and software-based (CPU) rendering
Project Overview
The Dual Rasterizer offers a flexible 3D rendering framework that can switch between hardware-accelerated (DirectX 11) and software-based (CPU) rendering at runtime to compare performance and visual output.
Hardware Rendering
Leverages DirectX 11 GPU pipeline for accelerated rendering with advanced features.
Software Rendering
Custom CPU-based rasterizer implementing fundamental graphics pipeline concepts.
Shading Techniques
Multiple shading modes including combined, observed area, diffuse, and specular.
Rendering Comparison
Drag the slider to compare hardware-accelerated rendering (DirectX 11) with software-based rendering (CPU)

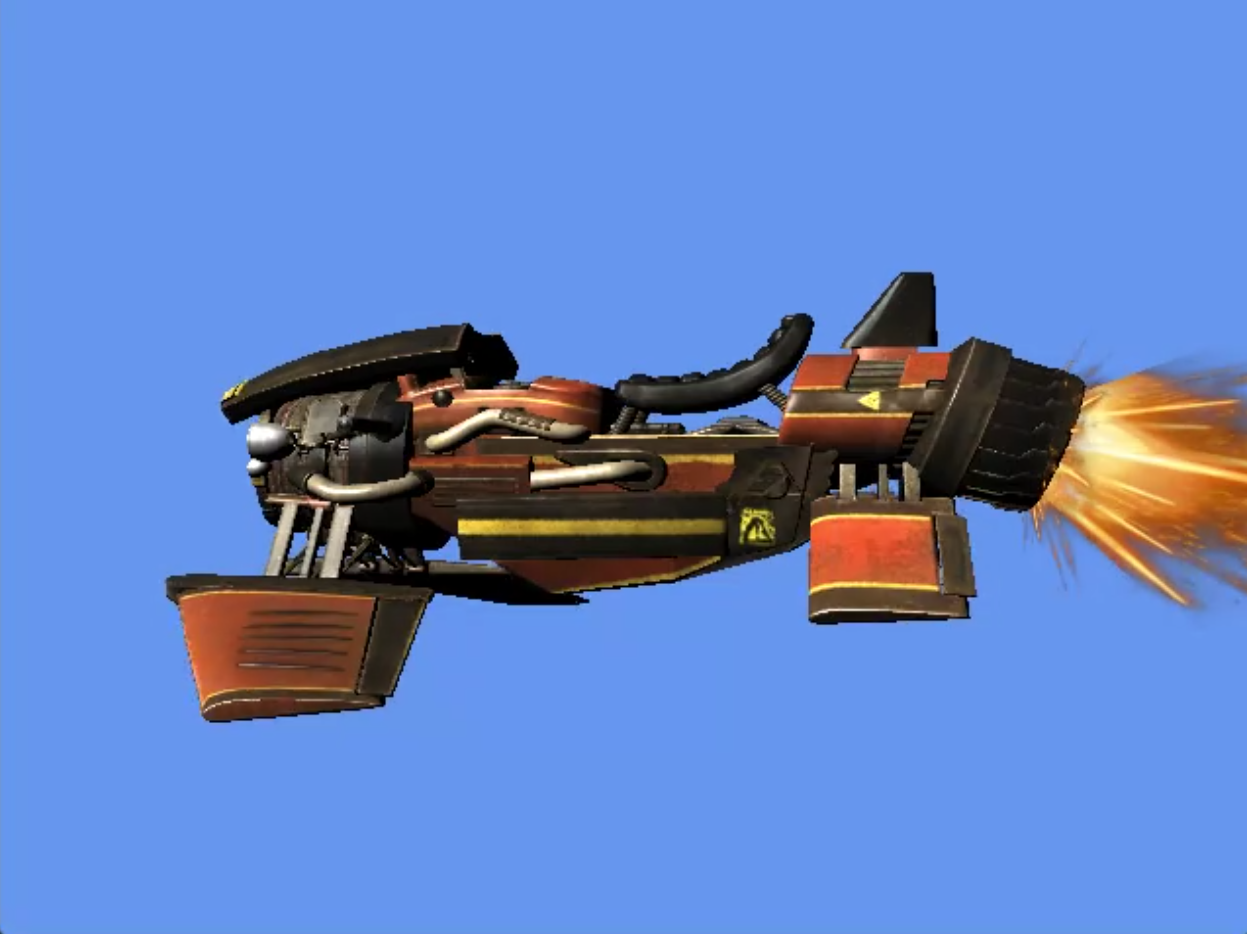

HARDWARE RENDERING

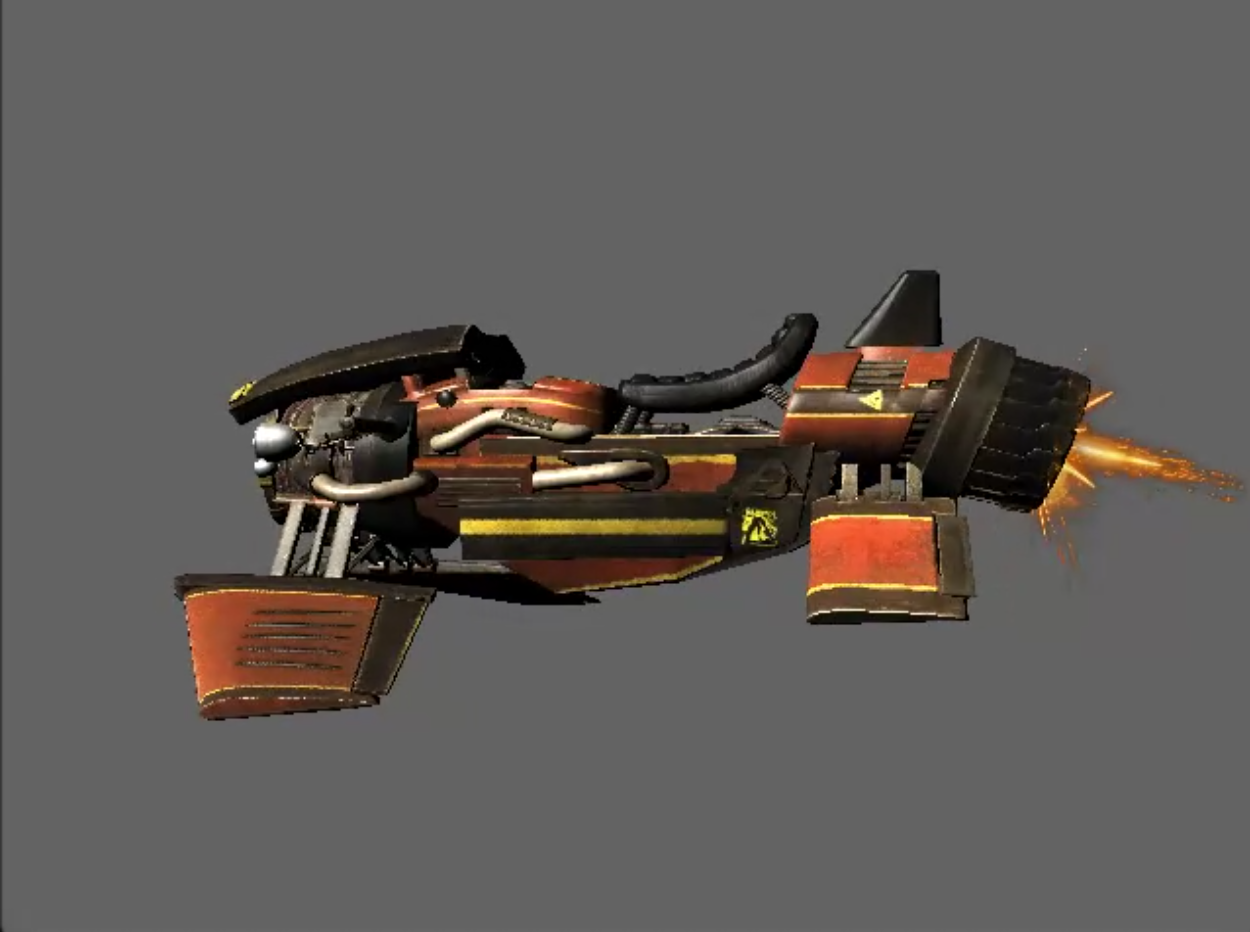

SOFTWARE RENDERING
Key Features
Shading Techniques
- Combined (Diffuse + Specular)
- Observed Area (Ambient Occlusion)
- Diffuse only
- Specular only
Texture Mapping
- UV interpolation
- Normal mapping support
- Transparent Fire Effect
- Alpha blending
Visualization & Debugging
- Depth buffering visualization
- Bounding box visualization
- Camera system with configurable matrices
- Culling modes (Back, Front, None)
Interactive Controls
F1
Toggle Rasterizer Mode (HARDWARE/SOFTWARE)
Shared
F2
Toggle Vehicle Rotation
Shared
F3
Toggle FireFX
Shared
F4
Cycle Sampler State
Hardware
F5
Cycle Shading Mode
Software
F6
Toggle NormalMap
Software
F7
Toggle DepthBuffer Visualization
Software
F8
Toggle BoundingBox Visualization
Software
F9
Cycle CullMode
Shared
F10
Toggle Uniform ClearColor
Shared
F11
Toggle Print FPS
Shared
Technical Details
Software Rasterizer
- Custom vertex shader equivalent on CPU
- Barycentric coordinate-based triangle rasterization
- Z-buffer implementation with per-pixel depth testing
- UV coordinate interpolation and sampling
- Normal mapping for enhanced surface detail
Hardware Renderer
- DirectX 11 device and swap chain configuration
- HLSL vertex and pixel shaders
- Sampler states (Point, Linear, Anisotropic)
- Depth stencil for depth testing
- Render-to-texture for effects
